M2 uses small pictures, called icons, in place of words in many places. This guide lists the ones you'll see most.
Resting your pointer on an icon changes nothing. Many icons show a short label that names the job. Most trash cans ask you to confirm before anything is deleted.
In the top bar
| What it looks like | What it does |
|---|---|
| Three short lines | Opens the main menu. |
| A small house, next to the M2 logo | Takes you to Home. |
| A question mark beside the search box | Opens Search Help. It isn't shown on a phone or a narrow window. |
| A globe | Lets you choose a language. |
| A grid of squares | Lets you switch to another app. It appears only when you can open two or more apps. |
| A download arrow with a number | Opens My Downloads. It appears while you have a finished file waiting to be saved. |
The Help widget in the bottom right corner of the screen opens help and lets you send a question to the support team. For more on it, see Open the Help Widget.
For more on the top bar, see Use the Menus to Get Around in M2. For the download arrow, see Download a File from My Downloads.
Icons for working with records
| What it looks like | What it does | Where you'll see it |
|---|---|---|
| A green circle with a plus | Adds something new. | A member's payment history, the dues a member owes (Add Dues), and a member's timeline (Add Event). |

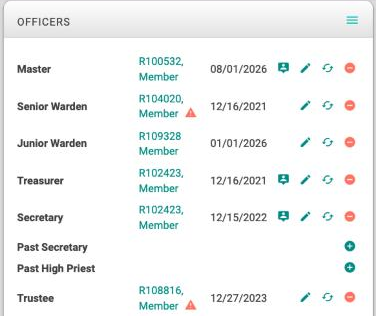

| A circle with a plus, in the same color as the links on your screen | Adds an officer (Add Officer). | An open office in the Officers panel. |

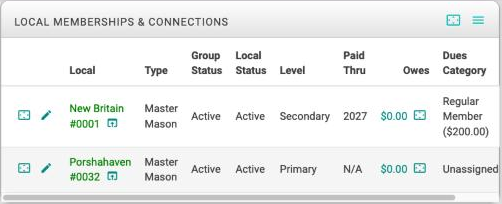

| A pencil | Edits the item. | Beside a dues row, an officer, or a membership (Edit Affiliation). |
| A red trash can | Deletes the item. | Beside a payment, a dues row, a membership (Delete Affiliation), and a member event. |
| A red circle with a minus | Ends or removes something. | An officer's term (End Office Term), a receipt in a funds transfer (Remove From Transfer), and a phone number, an email address, or any postal address except the Residential one on a member's record (Deactivate). |
| Two curved arrows | Changes who holds an office. | An officer in the Officers panel (Change Office Holder). |
| A box with four arrows pointing outward | Opens the details in a window. | A membership (Show Affiliation), a member's receipts (Show Receipts), and a payment. |
| A box with an arrow pointing up | Goes to the full page for the item. | Beside a local group's name on a member record (View Local), and on an account or fund window (Open Detail View). |
| A magnifying glass | Shows the details of a member event. | A member's timeline (Show event). |
| An envelope | Sends an email. It appears only when the member has an email address. On the Dues Owed card (Email Dues Notice), it opens a window first. On a payment (Email Receipt), it sends the receipt as soon as you click it. | The Dues Owed card and a payment. |
| A printer | Prints. | The Dues Owed card (Print Dues Notice) and a payment (Print Receipt). |
| A card | Asks your parent group for a dues card for that member. M2 asks you to confirm first. | A member's membership (Request Dues Card). |
| A banknote (a picture of a paper bill) | Opens the member's payments (Add And Edit Payments). | A members list tab that has no Dues Owed column. Where that column shows, click the amount instead. |
| A green banknote | Marks a lifetime member (Lifetime Member) or a member with an endowment (Endowments). | A member's memberships. |
| Circling arrows with an exclamation mark, in red | Resets what members of a dues category owe to the current dues rate (Reset Current Dues). M2 asks you to confirm first, and you can't undo it. | The dues categories table. |
| Circling arrows | Recalculates a member's years of good standing, or YGS (Recalculate YGS). | A member's timeline. |
| Three short lines in the header of a card, or above a table | Opens a list of actions for that card. Above a table, it lets you choose which columns show. | A card such as Members And Others, and tables with more than two columns. |
| A red play button | Opens a how-to video on YouTube in a new tab. In a few places it opens a short list of videos (Howto Videos) to choose from. | The header of a card or panel. |
| Two overlapping squares | Copies the text beside it. | Your local group's Connect address and legal name. |
For the dues card icon, see Member Record: Request Dues Card.
Icons that call for a look
| What it looks like | What it means |
|---|---|
| An exclamation mark in a circle or triangle, amber or red | Something needs attention. Rest your pointer on it to see why, where a label is available. For example, a red triangle beside an officer's name means Officer Inactive. A red circle beside a lifetime member's dues category means Lifetime Member Owes Dues. In a members list, an amber circle beside a dues category means the category is unknown. |
| A green circle with a check | In the User column of a members list, the member has an account. In the Downloaded column of My Downloads, you've saved that file. |
